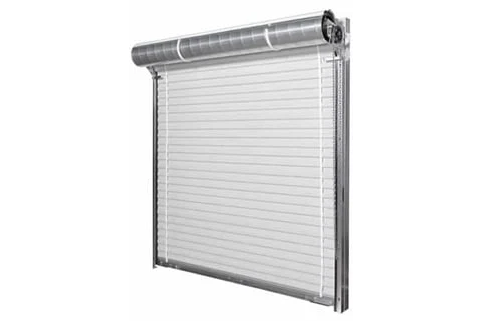

Model 1000i

Description

Insulated Economical Roll-Up Door Insulation Two layers of heavy duty polyethelene air-bubble cushioning sandwiched between two layers of aluminum mylar film. Laid in place insulation with 4.0 R value. Top and side draft stop included. Curtain Grade 80 steel 26-gauge galvanized corrugated steel Over 30 Color Options Wash coat over primer interior side Super Durable Polyester paint coatings, which are corrosion resistant Manufacturer coating warranty: 40-year film integrity; up to 30-year chalk and fade, subject to manufacturer terms Flexible nylon wear strips Bottom Bar 2” by 1 ½” galvanized angle 24 gauge acrylic-coated galvalumed roll formed steel Stainless steel bolts Bulb astragal (Durometer 75) Axle/Torque Tube Oil tempered torsion springs conforming to ASTM A229 Low friction, grease-filled steel ball bearings staked in each drum 18-gauge, 9 ½” diameter galvanized drum 26 gauge spiral torque tubing that houses axle assembly Guide Vinyl guide wear strip 16 gauge galvanized Bolt on head stop ¼” thick steel Pre-punched for lock 2 ¼” guide depth Universal jamb mount Hardware Bottom bar mounted 12 gauge slide locks – 2 per door Bottom bar mounted 16 gauge step plate – 2 per door Ratchet tensioner device 12 gauge door mounting brackets
