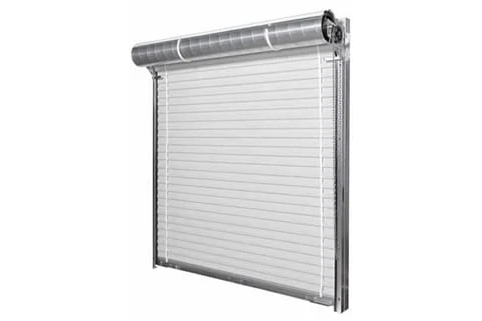

Model 1100

Description

Economical Commercial Roll-up Door Windload Rated +24.4 PSF and -27.0 PSF for opening widths through 8’8” Rated +19.4 PSF and -22.7 PSF for opening widths over 8’8” through 10’0” Designed in accordance with ASCE 7-02 and the Florida Building Code 2004 with 2006 Supplement and the International Building Code 2003 Curtain 26-gauge galvanized corrugated steel Grade 80 steel Over 30 Color Options Super Durable Polyester paint coatings, which are corrosion resistant Wash coat over primer interior side Bottom Bar 24 gauge acrylic-coated galvalumed roll formed steel 2” x 1 ½” galvanized angle Bulb astragal (Durometer 75) Stainless steel bolts Axle/Torque Tube 18-gauge, 9 ½” diameter galvanized drum Low friction, grease-filled steel ball bearings staked in each drum 26 gauge spiral torque tubing that houses axle assembly Guides 16 gauge galvanized Vinyl guide wear strip Bolt on head stop ¼” thick steel 2 ¼” guide depth Pre-punched for lock Universal jamb mount Hardware Bottom bar mounted 12 gauge slide locks – 2 per door Bottom bar mounted 16 gauge step plate – 2 per door 12 gauge door mounting brackets Ratchet tensioner device
