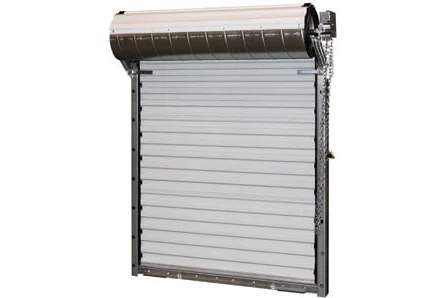

Model 3652

Model 3652

Price range: $2,107.79 through $4,306.26

Delivery, installation and options are quoted before payment. Manufacturer specifications apply to this model and configuration.

Delivery and installation are quoted before payment.

Request complete price
SKU: RM-MODEL-3652 Category:

Description

Certified Wind Load Rated Metal Roll Up Doors Curtain 26-gauge galvanized corrugated steel Grade 80 galvanized steel Over 30 Color Options Super Durable polyester paint coatings, which are corrosion resistant Wash coat over primer interior side Manufacturer coating warranty: 40-year film integrity; up to 30-year chalk and fade, subject to manufacturer terms Flexible nylon wear strips Nylon windlock Bottom Bar 24 gauge acrylic-coated galvalumed roll formed steel 2” x 1 ½” galvanized angle Bulb astragal (Durometer 75) Stainless steel nuts and bolts Axle/Torque Tube 16-gauge, 12” diameter galvanized drum Low friction, grease-filled steel ball bearings staked in each drum 26 gauge spiral torque tubing that houses axle assembly Guides 14 gauge galvanized steel guide Bolt on head stop ¼” thick steel 2″ guide depth Pre-punched for lock and attachment bolts Universal jamb mount Hardware Bottom bar mounted 10 gauge slide locks – 2 per door Bottom bar mounted 16 gauge step plate – 2 per door 12 gauge door mounting brackets 1-5/16” tension holding device

Additional information

Door size

8' x 8', 8' x 9', 8' x 10', 8' x 12', 8' x 14', 9' x 8', 9' x 9', 9' x 10', 9' x 12', 9' x 14', 10' x 8', 10' x 9', 10' x 10', 10' x 12', 10' x 14', 12' x 8', 12' x 9', 12' x 10', 12' x 12', 12' x 14', 14' x 8', 14' x 9', 14' x 10', 14' x 12', 14' x 14', 16' x 8', 16' x 9', 16' x 10', 16' x 12', 16' x 14', 18' x 8', 18' x 9', 18' x 10', 18' x 12', 18' x 14'
